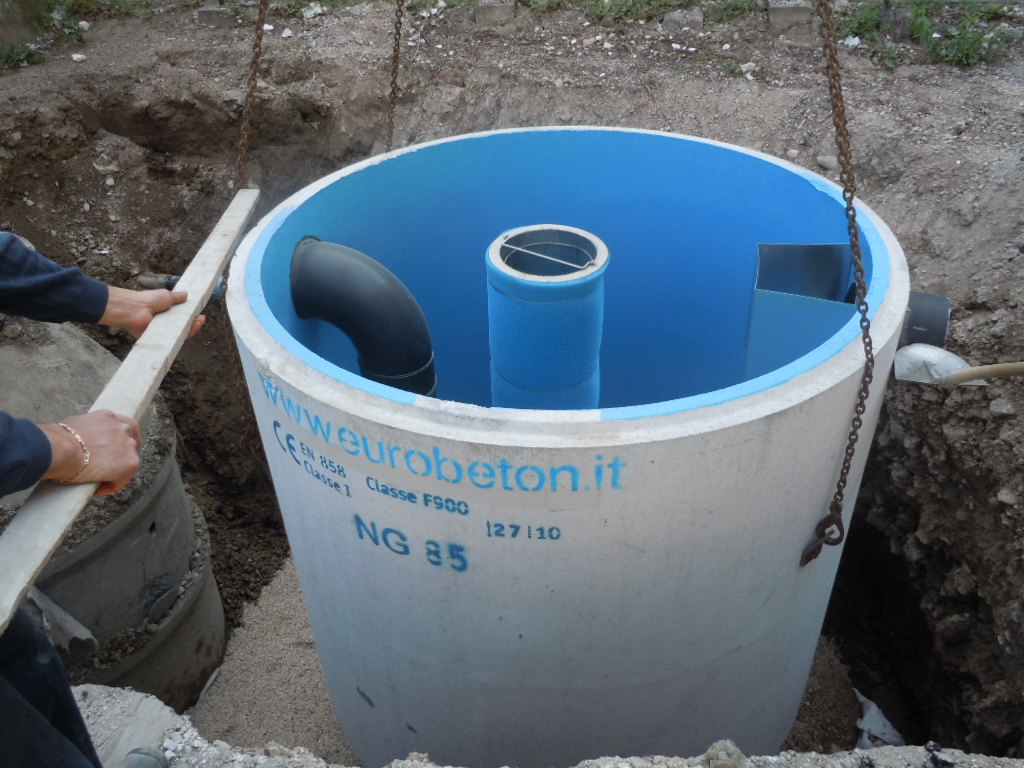

da smistare 0063 - Mineral oil separators in reinforced concrete environment-and-ecology

ORTNER ABWASSERTECHNIK

Mineral oil separators with coalescence filter, backflow blockage valve and automatic closure float with chemical volumetric commissioning according to standard DIN 1999 and European standards EN 858-1.
Internal parts wholly in stainless steel and pipes in geberit with coating with double component oil-repellent paint.

Models

Models for garages 2 to 4 litres/sec.
Models for car washes 3 to 25 litres/sec.
Models in pig-iron 1.5 to 6 litres/sec.

ITEM OF CONTRACT SPECIFICATIONS MAXI KOMPACT

SEPARATOR FOR GASOLINE AND MINERAL OILS MODEL “MAXI KOMPACT” CONSISTING OF A SINGLE MONOBLOC WITH AUTOMATIC FLOAT CLOSURE, FLOOD BLOCKAGE VALVE, TANK FOR THE COLLECTION OF OIL AND COALESCENCE FILTER WITH HIGH SEPARATION PERFORMANCE (99.9%) WITH AMOUNTS OF HYDROCARBONS IN DISCHARGE LESS THAN 5mg./litre IN COMPLIANCE WITH STANDARDS DIN 1999 (CHECKING BY A CAP PLACED BEFORE THE FINAL OUTLET). COMPLETE WITH COMPARTMENT FOR THE SETTLING OF RESIDUE
INTERNAL MATERIALS WHOLLY IN STAINLESS STEEL AND GEBERIT WITH COATING OF THE STRUCTURE WITH DOUBLE COMPONENT OIL-REPELLENT PAINT.
MODELS NG 3 – 7 – 10

ITEM OF CONTRACT SPECIFICATIONS MEGA DUO

SEPARATOR FOR GASOLINE AND MINERAL OILS MODEL “MEGA DUO” CONSISTING OF A MONOBLOC MEASURING 5000 LITRES FOR THE COLLECTION OF RESIDUE CONNECTED IN SERIES TO A MONOBLOC DN. 2000 FOR THE SEPARATION OF THE GASOLINE WITH AUTOMATIC CLOSURE FLOAT, FLOOD BLOCKAGE VALVE, TANK FOR THE COLLECTION OF OIL AND COALESCENCE FILTER WITH HIGH SEPARATION PERFORMANCE (99.9%) WITH AMOUNTS OF HYDROCARBONS IN DISCHARGE LESS THAN 5 mg./litre IN COMPLIANCE WITH STANDARDS DIN 1999 (CHECKING BY A CAP PLACED BEFORE THE FINAL OUTLET).
INTERNAL MATERIALS WHOLLY IN STAINLESS STEEL AND GEBERIT WITH COATING OF THE STRUCTURE WITH DOUBLE COMPONENT OIL-REPELLENT PAINT.
MODELS NG 7 – 10 – 12 – 15 – 20 – 40

ITEM OF CONTRACT SPECIFICATIONS ECOSTAR

SEPARATOR FOR GASOLINE AND MINERAL OILS MODEL “ECOSTAR” CONSISTING OF A SINGLE MONOBLOC WITH AUTOMATIC CLOSURE FLOAT AND COALESCENCE FILTER WITH HIGH SEPARATION PERFORMANCE (99.9%) WITH AMOUNTS OF HYDROCARBONS IN DISCHARGE LESS THAN 5mg./litre IN COMPLIANCE WITH STANDARDS DIN 1999 (CHECKING BY A CAP PLACED BEFORE THE FINAL OUTLET). COMPLETE WITH COMPARTMENT FOR THE SETTLING OF RESIDUE
INTERNAL MATERIALS WHOLLY IN STAINLESS STEEL AND GEBERIT WITH COATING OF THE STRUCTURE WITH DOUBLE COMPONENT OIL-REPELLENT PAINT.
MODELS NG 3 – 6 – 10 – 15 – 20
